“子非鱼，焉知鱼之乐”

本文采用编译器：jupyter

逻辑回归方法是从线性回归方法发展过来的，通常解决的是分类问题，读者或许有这样一个疑问：既然是回归算法又么解决分类问题的呢？

道理其实很简单，在我们求出线性回归系数a，b之后，对于每一个输入的x值，模型都可以输出对应的y值，如果把输出值y限制在0到1的范围内，那么这个y就非常的像一个概率p，我们只用规定概率的不同取值范围对应不同的标记值，就可以把一个回归问题转化成分类问题。

这个转化过程就是介绍的重点，如图。


在回归问题中，输出的y取值范围为 负无穷到正无穷


回归问题要求输出结果值域为[0, 1]，故做如下变换：


定义Sigmoid函数：




01 Sigmoid函数

import numpy as np
import matplotlib.pyplot as plt

def sigmoid(t):
    return 1 / (1 + np.exp(-t))

x = np.linspace(-10, 10, 500)
y = sigmoid(x)
​
plt.plot(x, y)
plt.show()


由上面的分析可得：


于是逻辑回归问题就可以转化成：对于给定的样本数据集X，y，找到参数使得可以最大程度获得样本数据集X对应的分类输出y

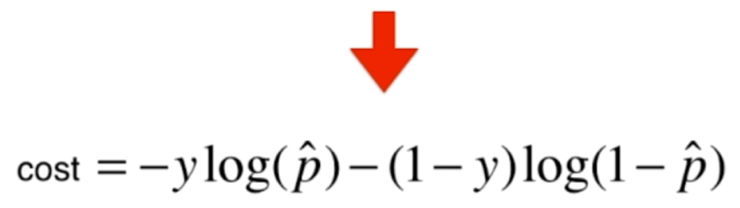

首先还是思考如何表示损失的函数：

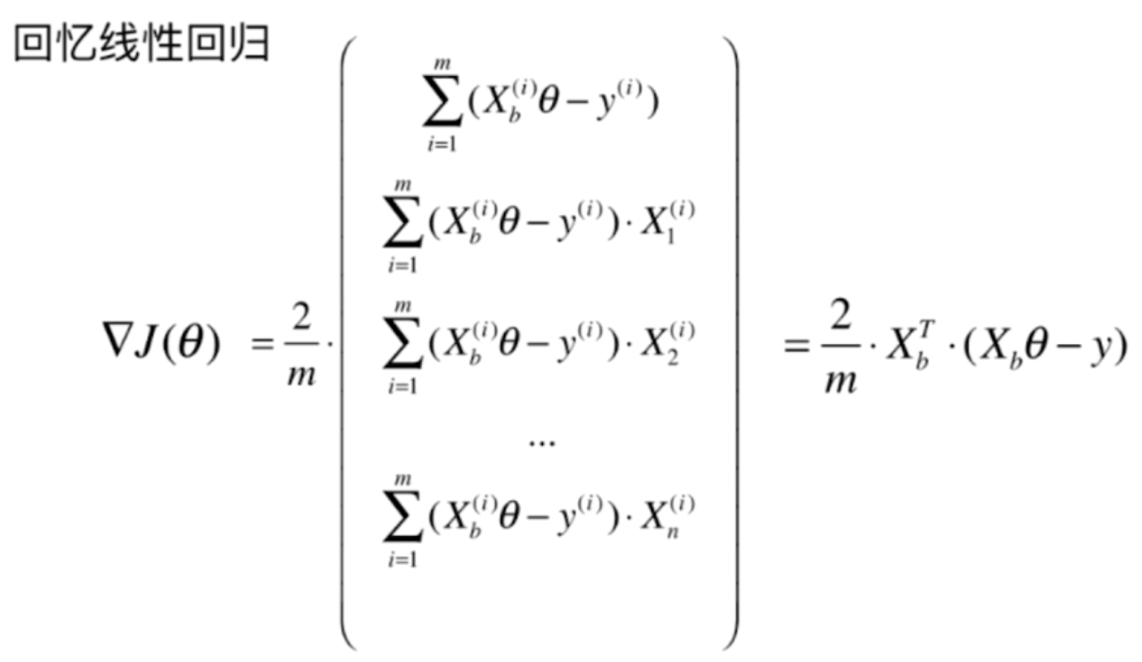

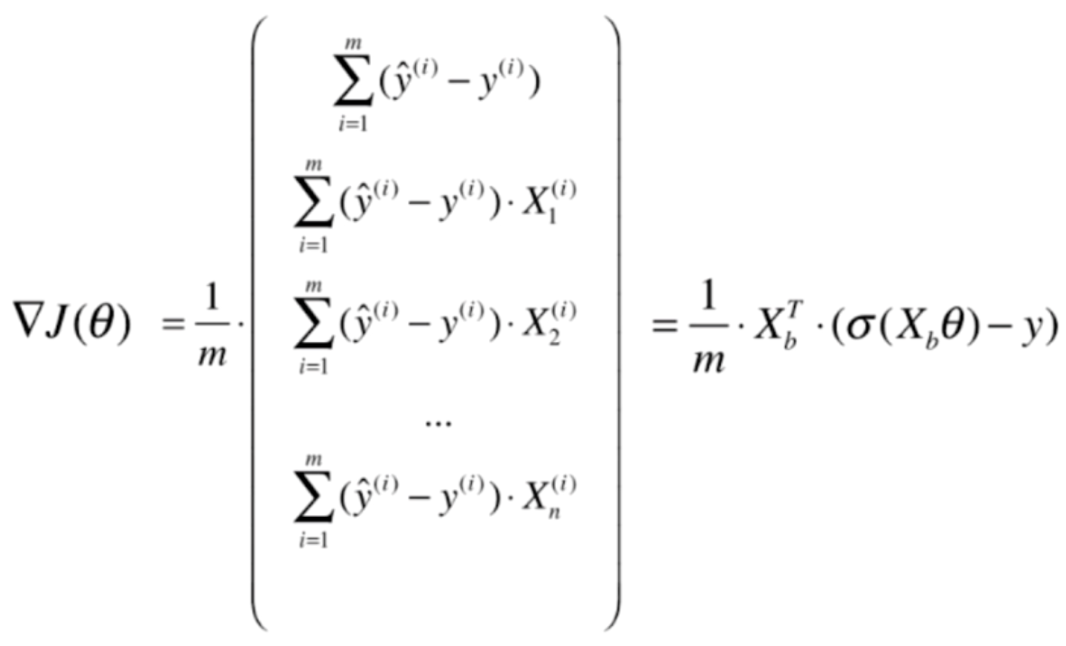

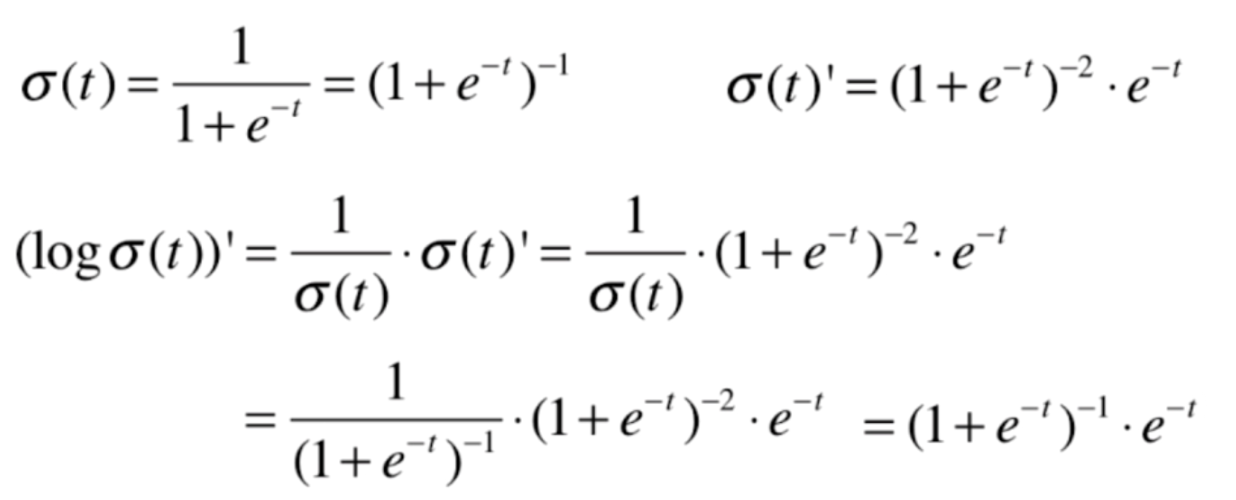

没有公式解，只能用梯度下降法求解，过程如下（可跳过直接查看结果）：





前半部分：

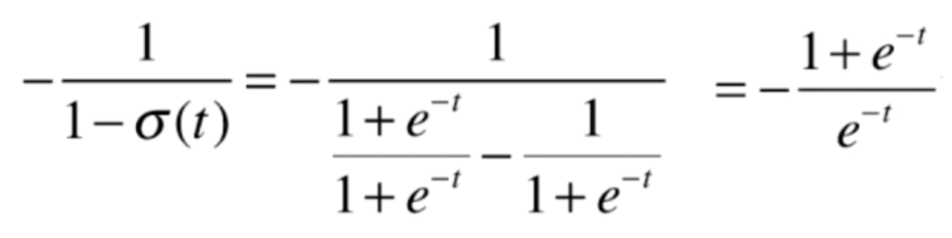

 后半部分：









02 实现逻辑回归



import numpy as np
import matplotlib.pyplot as plt
from sklearn import datasets
​
iris = datasets.load_iris()

X = iris.data
y = iris.target

# 逻辑回归解决的是二分类问题，所以只取两个类别
X = X[y<2, :2]
y = y[y<2]

X.shape
# Out[8]:
# (100, 2)

y.shape
# Out[9]:
# (100,)

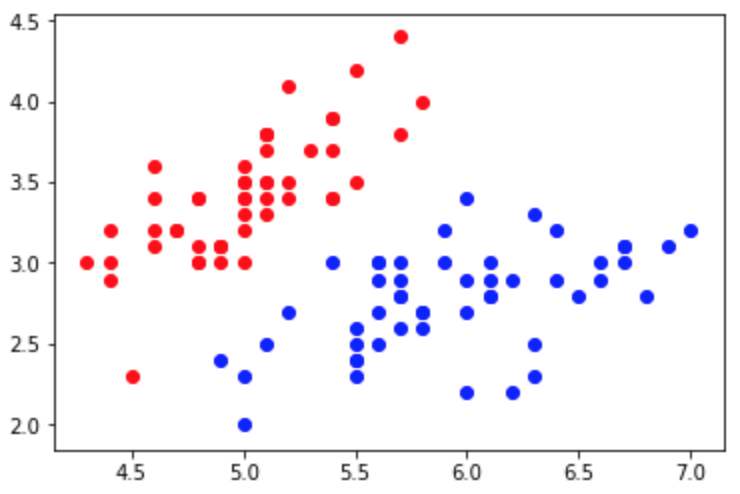

plt.scatter(X[y==0,0],X[y==0,1],color='red')
plt.scatter(X[y==1,0],X[y==1,1],color='blue')
plt.show()


使用逻辑回归

from playML.model_selection import train_test_split
​
X_train, X_test, y_train, y_test = train_test_split(X, y, seed=666)

from playML.LogisticRegression import LogisticRegression
​
log_reg = LogisticRegression()
log_reg.fit(X_train, y_train)
# Out[12]:
# LinearRegression()

log_reg.score(X_test, y_test)
# Out[14]:
# 1.0

log_reg.predict_proba(X_test)
"""
Out[15]:
array([ 0.92972035,  0.98664939,  0.14852024,  0.17601199,  0.0369836 ,
        0.0186637 ,  0.04936918,  0.99669244,  0.97993941,  0.74524655,
        0.04473194,  0.00339285,  0.26131273,  0.0369836 ,  0.84192923,
        0.79892262,  0.82890209,  0.32358166,  0.06535323,  0.20735334])
"""

y_test # 概率大于0.5则判决为1，否则为0
# Out[16]:
# array([1, 1, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0])

log_reg.predict(X_test)
# Out[17]:
# array([1, 1, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0])



03 决策边界



# 根据模型计算由x1得到的x2
def x2(x1):
    return (-log_reg.coef_[0] * x1 - log_reg.intercept_) / log_reg.coef_[1]

# 计算决策边界
x1_plot = np.linspace(4, 8, 100)
x2_plot = x2(x1_plot)

# 可以观察到有一个点分类错误，但当我们用测试数据集对模型测试时得分是1，所以该点在训练数据集中
plt.scatter(X[y==0,0],X[y==0,1],color='red')
plt.scatter(X[y==1,0],X[y==1,1],color='blue')
plt.plot(x1_plot, x2_plot)
​
plt.show()

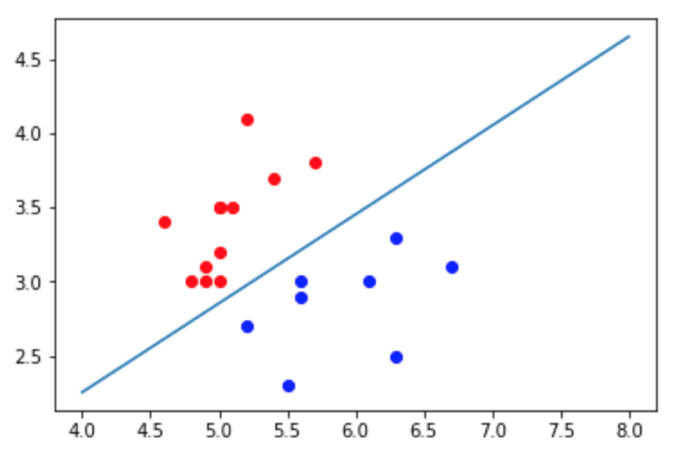

plt.scatter(X_test[y_test==0,0],X_test[y_test==0,1],color='red')
plt.scatter(X_test[y_test==1,0],X_test[y_test==1,1],color='blue')
plt.plot(x1_plot, x2_plot)
​
plt.show()


def plot_decision_boundary(model, axis):

    x0, x1 = np.meshgrid(
        np.linspace(axis[0], axis[1], int((axis[1]-axis[0])*100)).reshape(-1,1),
        np.linspace(axis[2], axis[3], int((axis[3]-axis[2])*100)).reshape(-1,1)
    )
    X_new = np.c_[x0.ravel(), x1.ravel()]

    y_predict = model.predict(X_new)
    zz = y_predict.reshape(x0.shape)

    from matplotlib.colors import ListedColormap
    custom_cmap = ListedColormap(['#EF9A9A', '#FFF59D','#90CAF9'])

    plt.contourf(x0, x1, zz, linewidth=5, cmap=custom_cmap)

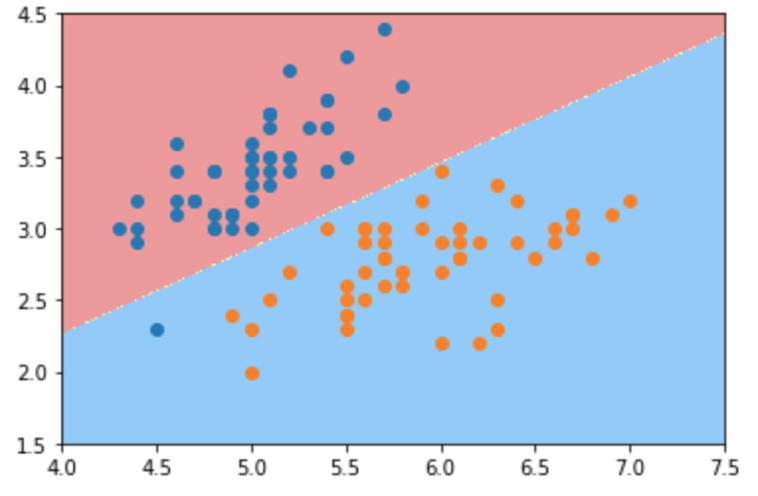

plot_decision_boundary(log_reg, axis=[4, 7.5, 1.5, 4.5])
plt.scatter(X[y==0,0],X[y==0,1])
plt.scatter(X[y==1,0],X[y==1,1])
​
plt.show()


kNN的决策边界



from sklearn.neighbors import KNeighborsClassifier
​
knn_clf = KNeighborsClassifier()
knn_clf.fit(X_train, y_train)
"""
Out[21]:
KNeighborsClassifier(algorithm='auto', leaf_size=30, metric='minkowski',
           metric_params=None, n_jobs=1, n_neighbors=5, p=2,
           weights='uniform')
"""

knn_clf.score(X_test, y_test)
# Out[22]:
# 1.0

plot_decision_boundary(knn_clf, axis=[4, 7.5, 1.5, 4.5])
plt.scatter(X[y==0,0],X[y==0,1])
plt.scatter(X[y==1,0],X[y==1,1])

plt.show()


# 对有三个类别的数据进行分类，为了方便可视化取前两个特征
knn_clf_all = KNeighborsClassifier()
knn_clf_all.fit(iris.data[:,:2], iris.target)
"""
Out[24]:
KNeighborsClassifier(algorithm='auto', leaf_size=30, metric='minkowski',
           metric_params=None, n_jobs=1, n_neighbors=5, p=2,
           weights='uniform')
"""

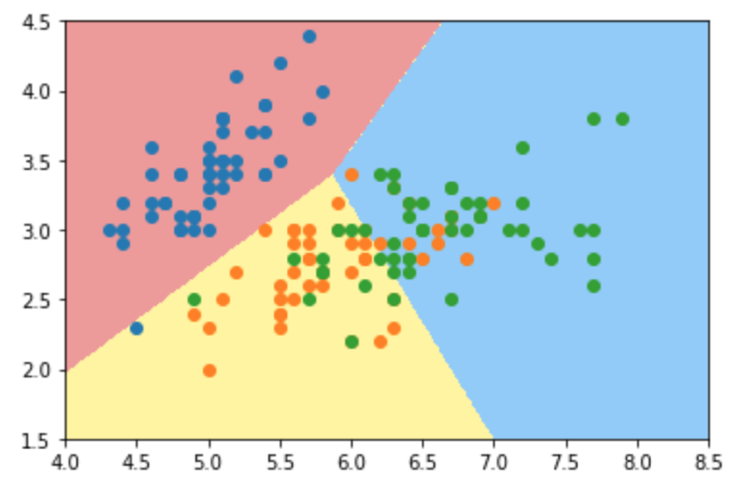

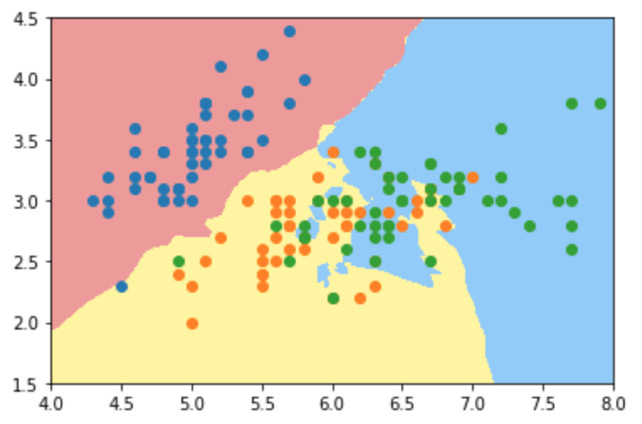

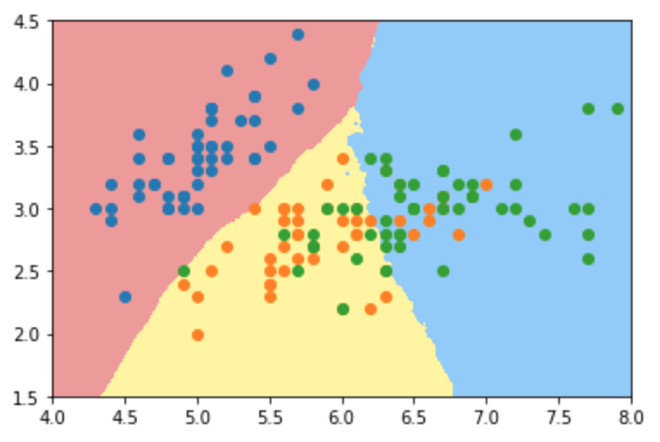

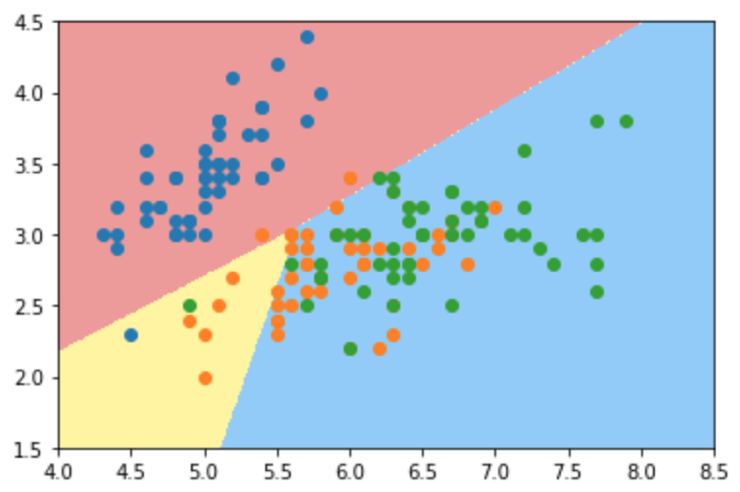

plot_decision_boundary(knn_clf_all, axis=[4, 8, 1.5, 4.5])
plt.scatter(iris.data[iris.target==0,0],iris.data[iris.target==0,1])
plt.scatter(iris.data[iris.target==1,0],iris.data[iris.target==1,1])
plt.scatter(iris.data[iris.target==2,0],iris.data[iris.target==2,1])
​
plt.show()


# n_neighbors越小，边界越不规整
knn_clf_all = KNeighborsClassifier(n_neighbors=50)
knn_clf_all.fit(iris.data[:,:2], iris.target)
"""
Out[26]:
KNeighborsClassifier(algorithm='auto', leaf_size=30, metric='minkowski',
           metric_params=None, n_jobs=1, n_neighbors=50, p=2,
           weights='uniform')
"""

plot_decision_boundary(knn_clf_all, axis=[4, 8, 1.5, 4.5])
plt.scatter(iris.data[iris.target==0,0],iris.data[iris.target==0,1])
plt.scatter(iris.data[iris.target==1,0],iris.data[iris.target==1,1])
plt.scatter(iris.data[iris.target==2,0],iris.data[iris.target==2,1])
​
plt.show()


04 逻辑回归中添加多项式特征



import numpy as np
import matplotlib.pyplot as plt

np.random.seed(666)

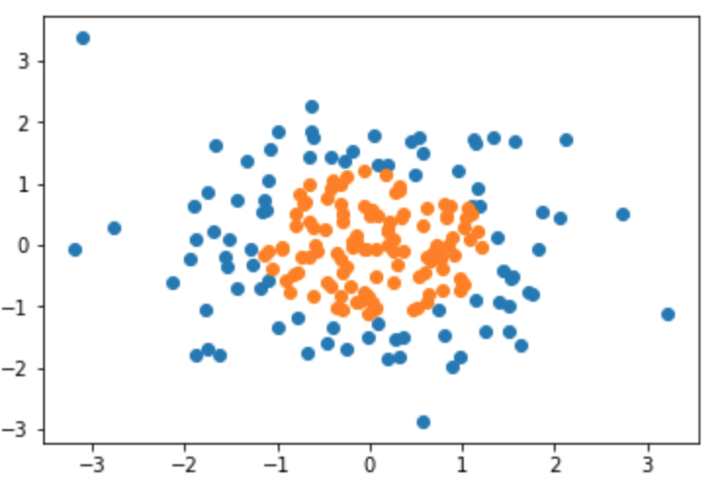

# 生成有两个特征的X
X = np.random.normal(0, 1, size=(200, 2))
# 特征y类似一个圆，半径小于1.5时置为1
y = np.array(X[:,0]**2 + X[:,1]**2 < 1.5, dtype='int')

plt.scatter(X[y==0,0], X[y==0,1])
plt.scatter(X[y==1,0], X[y==1,1])
plt.show()


使用逻辑回归



from playML.LogisticRegression import LogisticRegression

log_reg = LogisticRegression()
log_reg.fit(X, y)
# Out[5]:
# LinearRegression()

log_reg.score(X, y)
# 分类准确度较低
# Out[6]:
# 0.60499999999999998

def plot_decision_boundary(model, axis):

    x0, x1 = np.meshgrid(
        np.linspace(axis[0], axis[1], int((axis[1]-axis[0])*100)).reshape(-1,1),
        np.linspace(axis[2], axis[3], int((axis[3]-axis[2])*100)).reshape(-1,1)
    )
    X_new = np.c_[x0.ravel(), x1.ravel()]

    y_predict = model.predict(X_new)
    zz = y_predict.reshape(x0.shape)

    from matplotlib.colors import ListedColormap
    custom_cmap = ListedColormap(['#EF9A9A', '#FFF59D','#90CAF9'])

    plt.contourf(x0, x1, zz, linewidth=5, cmap=custom_cmap)

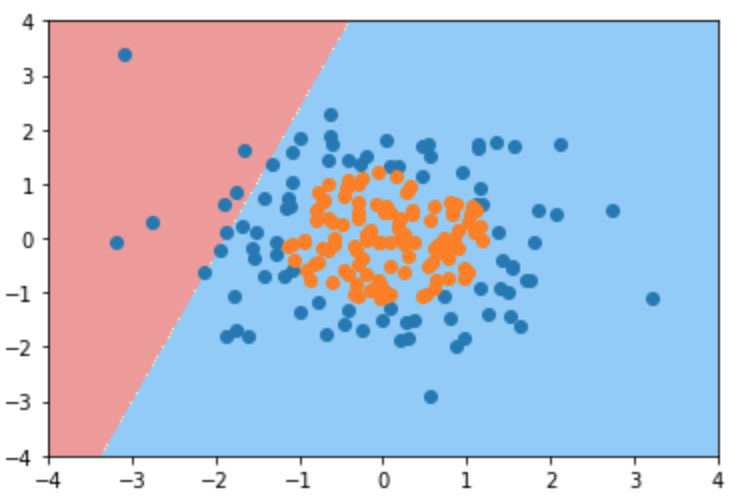

# 图示较低的分类准确度
plot_decision_boundary(log_reg, axis=[-4, 4, -4, 4])
plt.scatter(X[y==0,0], X[y==0,1])
plt.scatter(X[y==1,0], X[y==1,1])
plt.show()


from sklearn.pipeline import Pipeline
from sklearn.preprocessing import PolynomialFeatures
from sklearn.preprocessing import StandardScaler
​
# 1.添加多项式项 2.归一化 3.逻辑回归(自己实现的类，符合“构造函数，fit,predict,score”等标准)
def PolynomialLogisticRegression(degree):
    return Pipeline([
        ('poly', PolynomialFeatures(degree=degree)),
        ('std_scaler', StandardScaler()),
        ('log_reg', LogisticRegression())
    ])

poly_log_reg = PolynomialLogisticRegression(degree=2)
poly_log_reg.fit(X, y)
"""
Out[10]:
Pipeline(memory=None,
     steps=[('poly', PolynomialFeatures(degree=2, include_bias=True, interaction_only=False)), ('std_scaler', StandardScaler(copy=True, with_mean=True, with_std=True)), ('log_reg', LinearRegression())])
"""

poly_log_reg.score(X, y)
# Out[11]:
# 0.94999999999999996

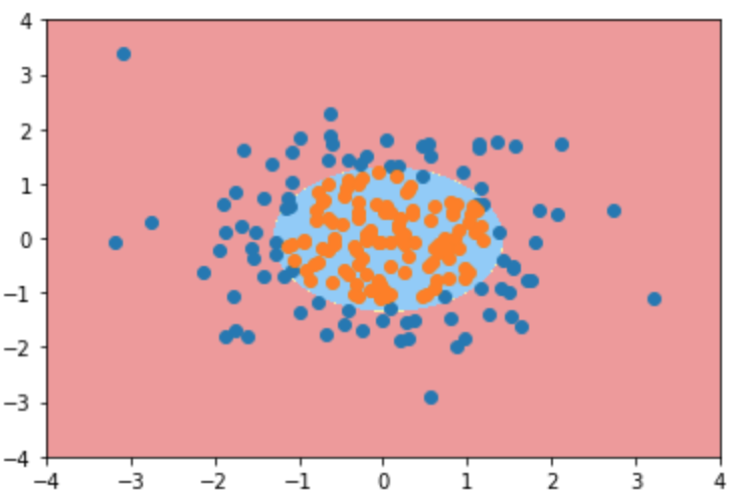

plot_decision_boundary(poly_log_reg, axis=[-4, 4, -4, 4])
plt.scatter(X[y==0,0], X[y==0,1])
plt.scatter(X[y==1,0], X[y==1,1])
plt.show()

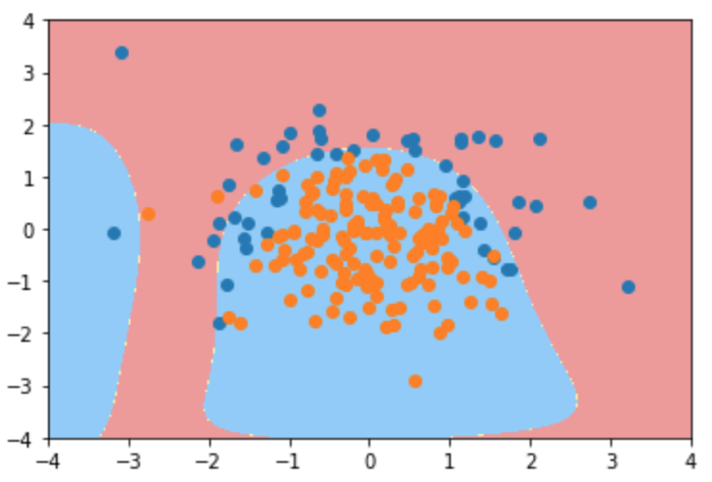

# 过拟合
poly_log_reg2 = PolynomialLogisticRegression(degree=20)
poly_log_reg2.fit(X, y)
"""
Out[14]:
Pipeline(memory=None,
     steps=[('poly', PolynomialFeatures(degree=20, include_bias=True, interaction_only=False)), ('std_scaler', StandardScaler(copy=True, with_mean=True, with_std=True)), ('log_reg', LinearRegression())])
"""

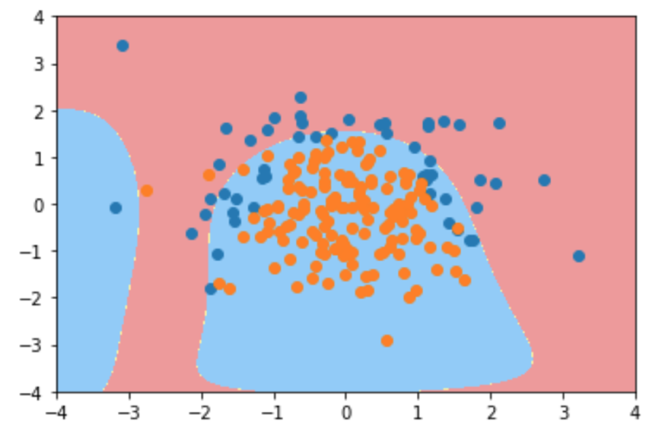

plot_decision_boundary(poly_log_reg2, axis=[-4, 4, -4, 4])
plt.scatter(X[y==0,0], X[y==0,1])
plt.scatter(X[y==1,0], X[y==1,1])
plt.show()


在逻辑回归中使用正则化的方法如下：




05 scikit-learn中的逻辑回归、使用正则化

import numpy as np
import matplotlib.pyplot as plt
​
np.random.seed(666)
X = np.random.normal(0, 1, size=(200, 2))
y = np.array(X[:,0]**2 + X[:,1] < 1.5, dtype='int')
for _ in range(20):
    y[np.random.randint(200)] = 1

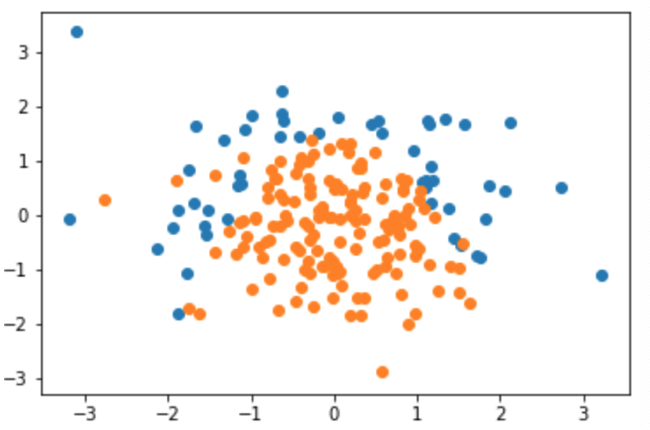

plt.scatter(X[y==0,0], X[y==0,1])
plt.scatter(X[y==1,0], X[y==1,1])
plt.show()


from sklearn.model_selection import train_test_split
​
X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=666)

使用scikit-learn中的逻辑回归



from sklearn.linear_model import LogisticRegression
​
log_reg = LogisticRegression()
log_reg.fit(X_train, y_train)
"""
Out[4]:
LogisticRegression(C=1.0, class_weight=None, dual=False, fit_intercept=True,
          intercept_scaling=1, max_iter=100, multi_class='ovr', n_jobs=1,
          penalty='l2', random_state=None, solver='liblinear', tol=0.0001,
          verbose=0, warm_start=False)
"""

log_reg.score(X_train, y_train)
# Out[5]:
# 0.79333333333333333

def plot_decision_boundary(model, axis):

    x0, x1 = np.meshgrid(
        np.linspace(axis[0], axis[1], int((axis[1]-axis[0])*100)).reshape(-1,1),
        np.linspace(axis[2], axis[3], int((axis[3]-axis[2])*100)).reshape(-1,1)
    )
    X_new = np.c_[x0.ravel(), x1.ravel()]

    y_predict = model.predict(X_new)
    zz = y_predict.reshape(x0.shape)

    from matplotlib.colors import ListedColormap
    custom_cmap = ListedColormap(['#EF9A9A', '#FFF59D','#90CAF9'])

    plt.contourf(x0, x1, zz, linewidth=5, cmap=custom_cmap)

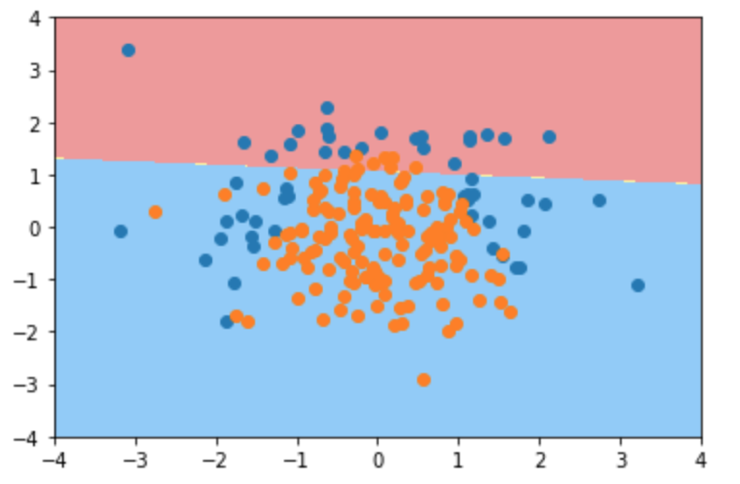

plot_decision_boundary(log_reg, axis=[-4, 4, -4, 4])
plt.scatter(X[y==0,0], X[y==0,1])
plt.scatter(X[y==1,0], X[y==1,1])
plt.show()


from sklearn.pipeline import Pipeline
from sklearn.preprocessing import PolynomialFeatures
from sklearn.preprocessing import StandardScaler
​
# 1.添加多项式项 2.归一化 3.逻辑回归(自己实现的类，符合“构造函数，fit,predict,score”等标准)
def PolynomialLogisticRegression(degree):
    return Pipeline([
        ('poly', PolynomialFeatures(degree=degree)),
        ('std_scaler', StandardScaler()),
        ('log_reg', LogisticRegression())
    ])

poly_log_reg = PolynomialLogisticRegression(degree=2)
poly_log_reg.fit(X_train, y_train)
"""
Out[9]:
Pipeline(memory=None,
     steps=[('poly', PolynomialFeatures(degree=2, include_bias=True, interaction_only=False)), ('std_scaler', StandardScaler(copy=True, with_mean=True, with_std=True)), ('log_reg', LogisticRegression(C=1.0, class_weight=None, dual=False, fit_intercept=True,
          intercept_scaling=1, max_iter=100, multi_class='ovr', n_jobs=1,
          penalty='l2', random_state=None, solver='liblinear', tol=0.0001,
          verbose=0, warm_start=False))])
"""

poly_log_reg.score(X_train, y_train)
# Out[10]:
# 0.91333333333333333

# 泛化能力
poly_log_reg.score(X_test, y_test)
# Out[11]:
# 0.93999999999999995

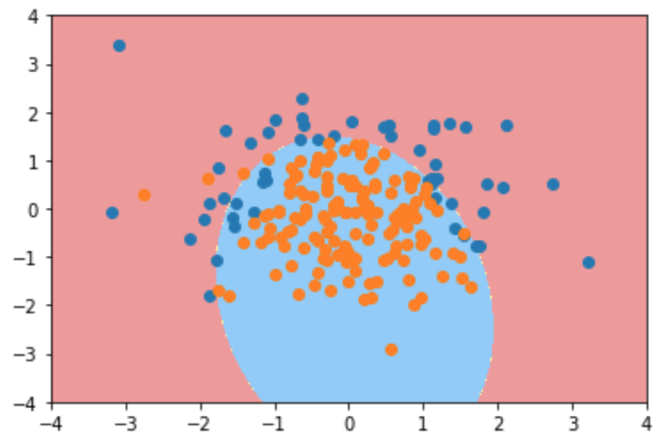

plot_decision_boundary(poly_log_reg, axis=[-4, 4, -4, 4])
plt.scatter(X[y==0,0], X[y==0,1])
plt.scatter(X[y==1,0], X[y==1,1])
plt.show()


poly_log_reg2 = PolynomialLogisticRegression(degree=20)
poly_log_reg2.fit(X_train, y_train)
"""
Out[13]:
Pipeline(memory=None,
     steps=[('poly', PolynomialFeatures(degree=20, include_bias=True, interaction_only=False)), ('std_scaler', StandardScaler(copy=True, with_mean=True, with_std=True)), ('log_reg', LogisticRegression(C=1.0, class_weight=None, dual=False, fit_intercept=True,
          intercept_scaling=1, max_iter=100, multi_class='ovr', n_jobs=1,
          penalty='l2', random_state=None, solver='liblinear', tol=0.0001,
          verbose=0, warm_start=False))])
"""

poly_log_reg2.score(X_train, y_train)
# Out[14]:
# 0.93999999999999995

# 泛化能力，可以看出有一定的过拟合
poly_log_reg2.score(X_test, y_test)
# Out[15]:
# 0.92000000000000004

plot_decision_boundary(poly_log_reg2, axis=[-4, 4, -4, 4])
plt.scatter(X[y==0,0], X[y==0,1])
plt.scatter(X[y==1,0], X[y==1,1])
plt.show()


# 重新定义管道，传入正则项系数C
def PolynomialLogisticRegression(degree, C):
    return Pipeline([
        ('poly', PolynomialFeatures(degree=degree)),
        ('std_scaler', StandardScaler()),
        ('log_reg', LogisticRegression(C=C))
    ])

poly_log_reg3 = PolynomialLogisticRegression(degree=20, C=0.1)
poly_log_reg3.fit(X_train, y_train)
"""
Out[18]:
Pipeline(memory=None,
     steps=[('poly', PolynomialFeatures(degree=20, include_bias=True, interaction_only=False)), ('std_scaler', StandardScaler(copy=True, with_mean=True, with_std=True)), ('log_reg', LogisticRegression(C=0.1, class_weight=None, dual=False, fit_intercept=True,
          intercept_scaling=1, max_iter=100, multi_class='ovr', n_jobs=1,
          penalty='l2', random_state=None, solver='liblinear', tol=0.0001,
          verbose=0, warm_start=False))])
"""

poly_log_reg3.score(X_train, y_train)
# Out[19]:
# 0.85333333333333339

poly_log_reg3.score(X_test, y_test)
# Out[20]:
# 0.92000000000000004

plot_decision_boundary(poly_log_reg3, axis=[-4, 4, -4, 4])
plt.scatter(X[y==0,0], X[y==0,1])
plt.scatter(X[y==1,0], X[y==1,1])
plt.show()

加入正则项后更趋向于degree=2时的情况


from sklearn.pipeline import Pipeline
from sklearn.preprocessing import PolynomialFeatures
from sklearn.preprocessing import StandardScaler
​
# 重新定义管道，传入正则项系数C，penalty
def PolynomialLogisticRegression(degree, C, penalty='12'):
    return Pipeline([
        ('poly', PolynomialFeatures(degree=degree)),
        ('std_scaler', StandardScaler()),
        ('log_reg', LogisticRegression(C=C))
    ])

poly_log_reg4 = PolynomialLogisticRegression(degree=20, C=0.1, penalty='l1') # 使用L1正则项
poly_log_reg4.fit(X_train, y_train)
"""
Out[23]:
Pipeline(memory=None,
     steps=[('poly', PolynomialFeatures(degree=20, include_bias=True, interaction_only=False)), ('std_scaler', StandardScaler(copy=True, with_mean=True, with_std=True)), ('log_reg', LogisticRegression(C=0.1, class_weight=None, dual=False, fit_intercept=True,
          intercept_scaling=1, max_iter=100, multi_class='ovr', n_jobs=1,
          penalty='l2', random_state=None, solver='liblinear', tol=0.0001,
          verbose=0, warm_start=False))])
"""

poly_log_reg4.score(X_train, y_train)
# Out[24]:
# 0.85333333333333339

poly_log_reg4.score(X_test, y_test)
# Out[25]:
# 0.92000000000000004

plot_decision_boundary(poly_log_reg4, axis=[-4, 4, -4, 4])
plt.scatter(X[y==0,0], X[y==0,1])
plt.scatter(X[y==1,0], X[y==1,1])
plt.show()


以上所讨论的逻辑回归只适用于解决二分类问题，这显然是不符合现实所需要的，所以为了使其可以解决多分类问题，发明了OvR与OvO算法，二者实现原理不同。

OvR：每次选取一个类别与其他所有类别进行二分类任务




OvO：每次挑出两个类别进行二分类任务


OvO耗时更久，结果更准确。

06 OvR和OvO



import numpy as np
import matplotlib.pyplot as plt
from sklearn import datasets
​
iris = datasets.load_iris()
X = iris.data[:,:2]
y = iris.target

from sklearn.model_selection import train_test_split
​
X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=666)

from sklearn.linear_model import LogisticRegression
​
log_reg = LogisticRegression()
log_reg.fit(X_train, y_train)
"""
Out[3]:
LogisticRegression(C=1.0, class_weight=None, dual=False, fit_intercept=True,
          intercept_scaling=1, max_iter=100, multi_class='ovr', n_jobs=1,
          penalty='l2', random_state=None, solver='liblinear', tol=0.0001,
          verbose=0, warm_start=False)
"""

log_reg.score(X_test, y_test)
# Out[4]:
# 0.65789473684210531

def plot_decision_boundary(model, axis):

    x0, x1 = np.meshgrid(
        np.linspace(axis[0], axis[1], int((axis[1]-axis[0])*100)).reshape(-1,1),
        np.linspace(axis[2], axis[3], int((axis[3]-axis[2])*100)).reshape(-1,1)
    )
    X_new = np.c_[x0.ravel(), x1.ravel()]

    y_predict = model.predict(X_new)
    zz = y_predict.reshape(x0.shape)

    from matplotlib.colors import ListedColormap
    custom_cmap = ListedColormap(['#EF9A9A', '#FFF59D','#90CAF9'])

    plt.contourf(x0, x1, zz, linewidth=5, cmap=custom_cmap)

plot_decision_boundary(log_reg, axis=[4, 8.5, 1.5, 4.5])
plt.scatter(X[y==0,0], X[y==0,1])
plt.scatter(X[y==1,0], X[y==1,1])
plt.scatter(X[y==2,0], X[y==2,1])
plt.show()


# 使用OvO，注意更换计算方式'newton-cg'
log_reg2 = LogisticRegression(multi_class='multinomial', solver='newton-cg')

log_reg2.fit(X_train, y_train)
log_reg2.score(X_test, y_test)
# Out[8]:
# 0.78947368421052633

plot_decision_boundary(log_reg2, axis=[4, 8.5, 1.5, 4.5])
plt.scatter(X[y==0,0], X[y==0,1])
plt.scatter(X[y==1,0], X[y==1,1])
plt.scatter(X[y==2,0], X[y==2,1])
plt.show()


使用所有数据



X = iris.data
y = iris.target
​
from sklearn.model_selection import train_test_split
​
X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=666)

log_reg = LogisticRegression()
log_reg.fit(X_train, y_train)
log_reg.score(X_test, y_test)
# Out[11]:
# 0.94736842105263153

log_reg2 = LogisticRegression(multi_class='multinomial', solver='newton-cg')
log_reg2.fit(X_train, y_train)
log_reg2.score(X_test, y_test)
# Out[12]:
# 1.0



OvO and OvR

from sklearn.multiclass import OneVsRestClassifier
​
# 传入二分类器
ovr = OneVsRestClassifier(log_reg)
ovr.fit(X_train, y_train)
ovr.score(X_test, y_test)
# Out[13]:
# 0.94736842105263153

from sklearn.multiclass import OneVsOneClassifier
​
ovo = OneVsOneClassifier(log_reg)
ovo.fit(X_train, y_train)
ovo.score(X_test, y_test)
# Out[14]:
# 1.0








本文为互联网自动采集或经作者授权后发布，本文观点不代表立场，若侵权下架请联系我们删帖处理！文章出自：https://wangjiawei.blog.csdn.net/article/details/88748910
-- 展开阅读全文 --
安全面试之XSS（跨站脚本攻击）
« 上一篇 07-24

随机推荐

《Web安全之机器学习入门》笔记：第五章 5.3 K近邻检测异常操作（一）

C# DataTable 不改变排序顺序得到名次

【蓝桥杯】KMP算法难以理解只能硬背？东哥这个思路让你10分钟彻底掌握

max-metric router-lsa（OSPF）知识点

发表评论

成为第一个评论的人

热门文章

1
Go语言实现MSF免杀上线、思路可转换自己生成马进行绕过免杀！
1.3k 阅读 ，
2
免杀 编译shellcode进行绕过杀软操作！
1.1k 阅读 ，
3
远控免杀系列文章与工具
1k 阅读 ，
4
WEBSEC-信息收集--第一篇
920 阅读 ，

标签TAG

最近回复

我要留言
